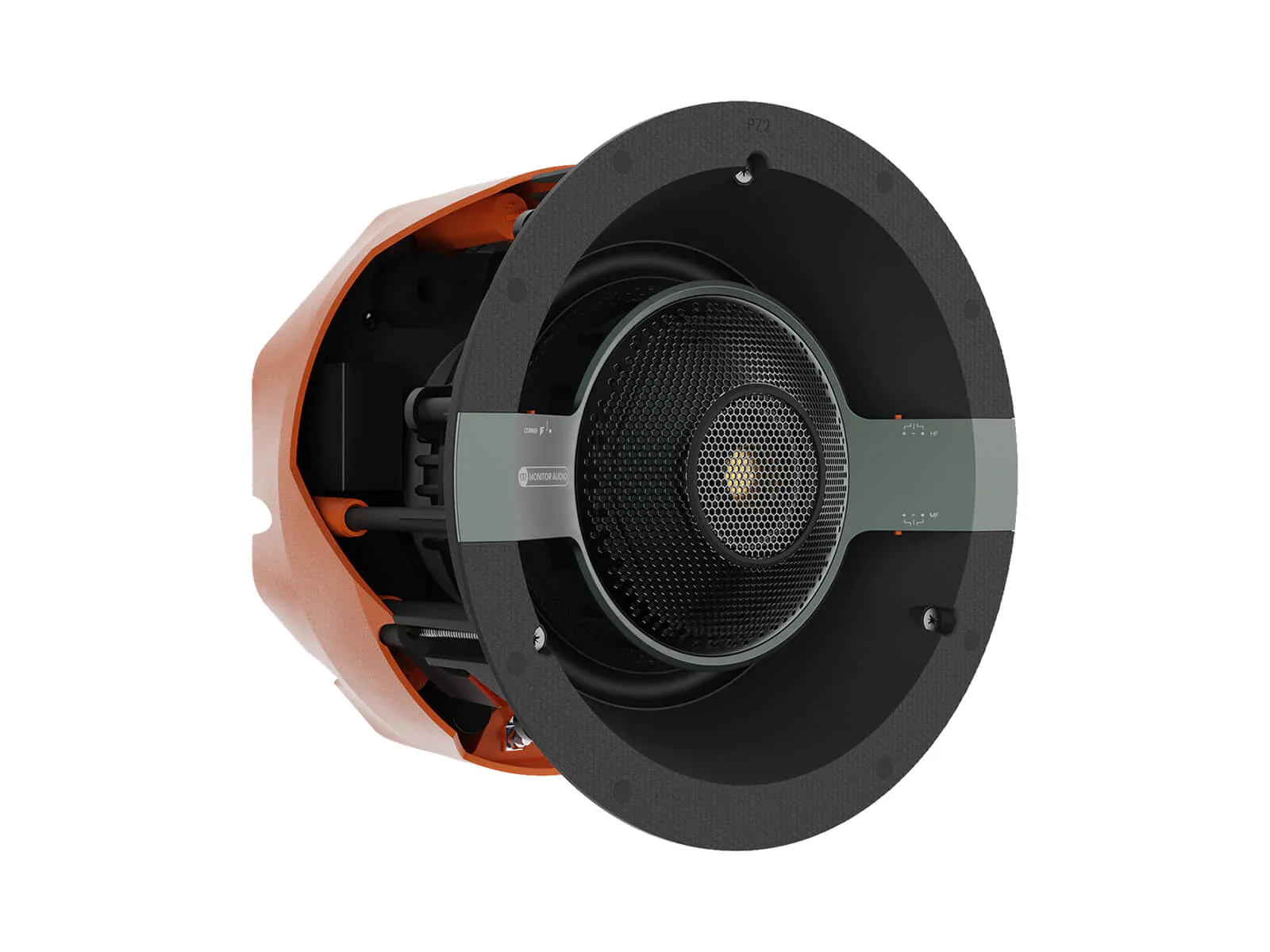

Monitor Audio C3M Creator Series In-Ceiling Speaker Single

Monitor Audio C3M Creator Series In-Ceiling Speaker Single

Introducing the exceptional medium-sized Tier 3 in-ceiling loudspeaker – a pinnacle of high-performance audio. This three-way model boasts cutting-edge components, including an RDT III bass driver, IDC II midrange driver, and IDC II tweeter with UD Waveguide II. With a convenient cut-out dimension of 212 mm, coupled with the revolutionary patented Quik-Link speaker cable connector and advanced Tri-Grip II, installation is quick, simple, and robust.

Crafted for pristine sound quality, this high-performance Tier 3 in-ceiling loudspeaker incorporates the latest acoustic technologies from Monitor Audio. The trio of RDT III bass driver, IDC II midrange driver, and IDC II tweeter with UD Waveguide II ensures unparalleled acoustic transparency and detail, akin to Monitor Audio's premium loudspeaker ranges where much of this acoustic technology originated.

Setting the standard for installed performance, this Tier 3 speaker delivers the ultimate audio experience. With a cut-out diameter of 212 mm, the Quik-Link speaker cable connector revolutionizes installation speed and ease, while the evolved Tri-Grip ensures a secure fitment.

Elevate your auditory senses with the pinnacle of acoustic engineering. Upgrade to the Tier 3 in-ceiling loudspeaker for an unrivaled audio journey where pristine sound quality meets cutting-edge technology!

Key Features

• Ideal for installations where high-performance acoustics are desired
• Three-way design
• Mid-frequency ‘mid-pod array’
• 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
• 1 x 7" (178 mm) RDT III bass driver
• 1 x 4" (102 mm) IDC II midrange driver

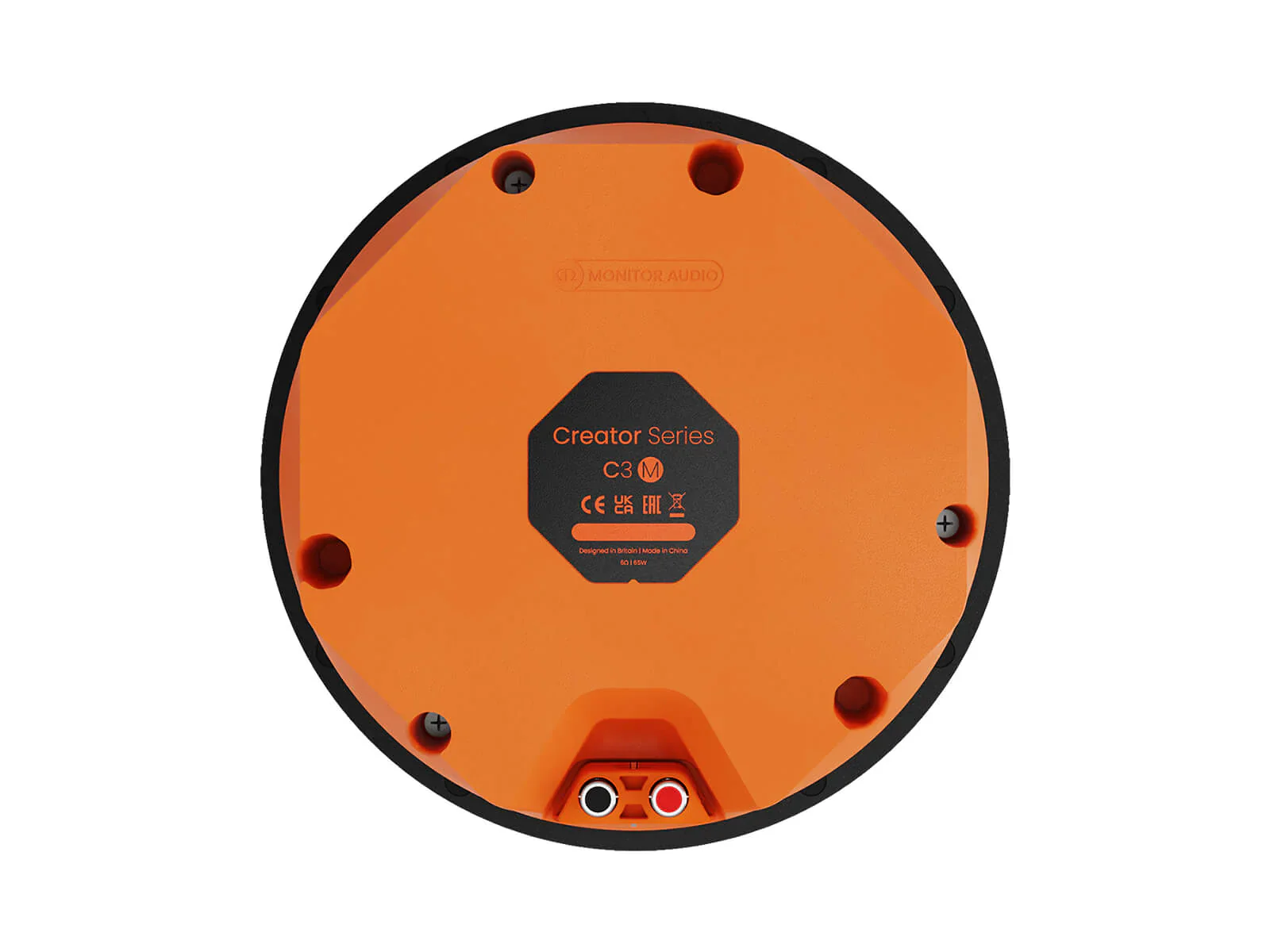

• Patented Quik-Link speaker cable connector for quicker installation
• Tri-Grip II for easy and secure fitment

General Information

• Enclosure Type: Open

• Guarantee Period (Months): 60

• Output: Mono

• Power Type: Passive

• Weight Each (Kg): 3.4


Application Appearance

• Visible Colour: White

• Visible Shape: Circular


Dimensions

• Cutout Diameter (mm): 212

• Mounting Depth (mm): 148

• Overall Depth (mm): 151

• Overall Diameter (mm): 242


Detailed Specifications

• Compatible Amplifier (Watts RMS): 45 - 180

• Frequency range (Hz): 45 - 35000

• Nominal Impedance (Ω): 6

• Max Power High (Watts): 120

• Sensitivity (dB): 87

• Sound Pressure (dB): 116


Driver Information

• Bass: 1
• Biggest Driver Size (mm): 178
• Mid: 1
• Tweeter: 1
