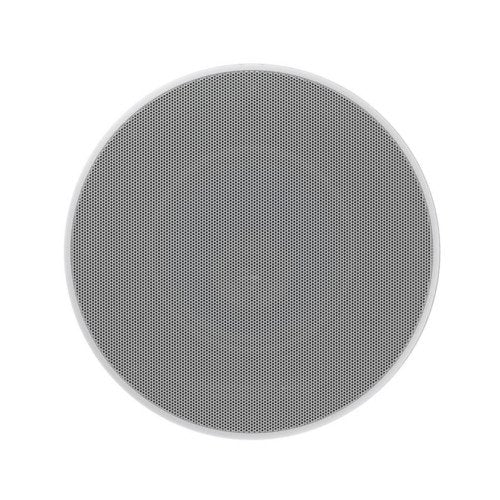

Bowers & Wilkins CCM684 Ceiling Speakers Pair
Bowers & Wilkins CCM684 Ceiling Speakers Pair
The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.
Specifications
Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 35Hz – 35kHz
Recommended Amp Power 25 – 130w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C8
Back Box 6C
$931.22
Bowers & Wilkins CCM684 Ceiling Speakers Pair—
$931.22
More Images
Bowers & Wilkins CCM684 Ceiling Speakers Pair
Bowers & Wilkins CCM684 Ceiling Speakers Pair
The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.
Specifications
Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 35Hz – 35kHz
Recommended Amp Power 25 – 130w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C8
Back Box 6C
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Bowers & Wilkins CCM684 Ceiling Speakers Pair
The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.
Specifications
Description 2-way in-ceiling system
Drive Units 1x ø25mm (1in) soft dome tweeter
1x ø200mm (8in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 35Hz – 35kHz
Recommended Amp Power 25 – 130w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
Pre-mount Kit C8
Back Box 6C
